HES7DB-USB-ETH Daughter Card

Top view

Bottom view

HES7DB-USB-ETH daughter card was designed to extend capabilities of HES boards while making physical prototyping or In-Circuit-Emulation. It has a small form factor and uses only one segment of BPX connector on HES main board. It provides Gigabit Ethernet PHY for networking, USB 3.0 device/hub and USB 2.0 OTG for communication and HDMI for multimedia/display designs. Due to a compact design and with BPX segment the daughter card can be flexibly connected to any FPGA on the main board that is exposed to the BPX connector.

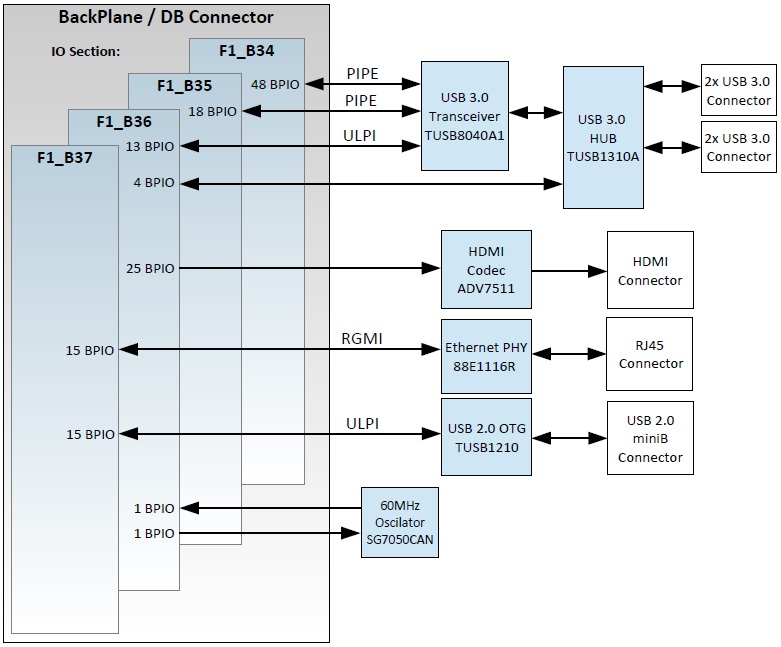

BLOCK DIAGRAM

HES7DB-USB-ETH Daughter Card

Components & Interfaces

  • Gigabit Ethernet PHY with RGMII interface (88E1116R)
  • USB 3.0 transceiver PHY with PIPE and ULPI interfaces (TUSB8040A1)
  • USB 3.0 Hub provides 4 USB 3.0 ports (TUSB1310A)
  • USB 2.0 OTG with ULPI interface (TUSB1210)
  • HDMI 1.4 Out - 225 MHz High Performance Transmitter (ADV7511)

Clocking

  • Oscillator 60 MHz

Connectivity

  • One segment of BPX connector:
    • MOLEX 76560 series (mates with 76150 series)
    • High speed (25 Gbps) connector
  • RJ45 ethernet receptacles
  • 4x USB 3.0 A receptacles
  • USB 2.0 Mini-B receptacle
  • HDMI receptacle
